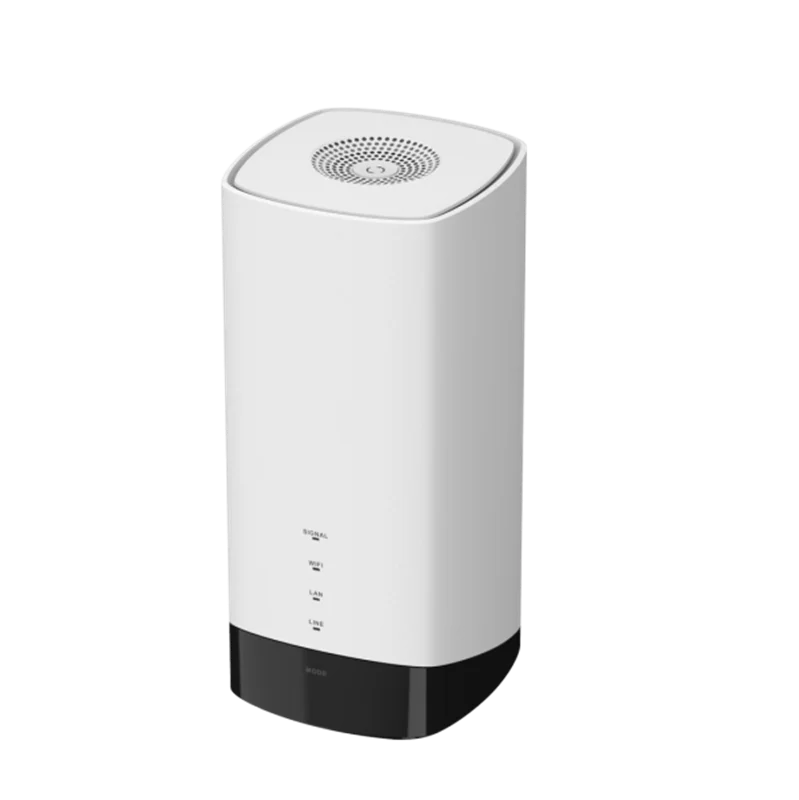

مودم سیمکارتی ارورا AURORA C082 4G/5G/TDLTE

مشتری محترم، این کالا پشت ویترینی (کارکرد کمتر از 100 ساعت) میباشد.

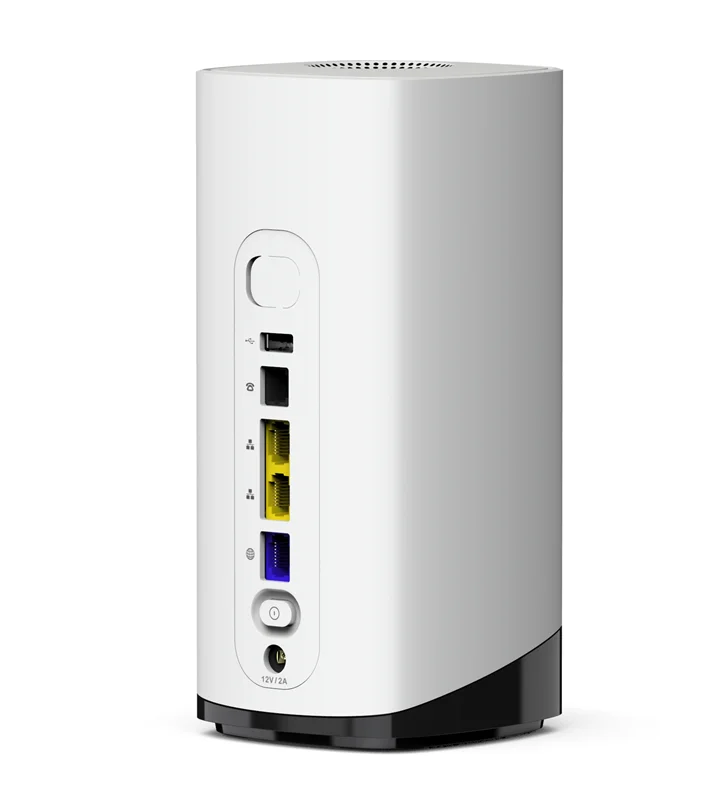

• Interface

  Power button	Press and Release Power on/off
  Power Source	DC 12V/2A
  Functional button	Press and start enabling WPS feature
  LAN port	2 x 1GE LAN Ports (RJ45) 1 x 1GE WAN port (RJ45)
  USB port	USB 2.0 high speed for external Disk
  External Antenna	1 x TS-9 connector for Tx 1 x Tx-9 connector for Rx
  Tel	1 x RJ11 port for Tel
  LED display	– Signal strength indicator – 5G network status – Wi-Fi Status – LAN Port status – Mode to indicate Power status or FOTA status
  Card slot	One 3FF (Micro) UICC/USIM card slot
  Reset button	One reset button hole (Hidden beside SIM slot)
  RF functions	Cellular 5G/LTE
  Chipset	Qualcomm Snapdragon X55
  Standard compliant:	3GPP Release 15(both LTE and 5G)
  Band support:	5G NR SA&NSA: N78; 4G LTE: B3、B38、B20、B41、B28; ENDC: 41C_N78; 3C_N78; 28A_N78; 20A_N78; 3A_28A_N78; 3A_41A_N78; 28A_41A_N78; LTE CA: CA B3_B38;
  Modulation：	Sub-6 UL: 256QAM, DL: 256QAM LTE DL:256QAM, UL:256QAM
  MIMO:	Sub-6 DL: 4×4, UL:2×2/1X1 LTE DL:4X4, UL:1X1
  Antenna (both LTE and 5G):	7 internal antennas
  Peak data rate:	Sub-6 DL: 2.3Gbps（100MHz）/4.6Gbps（200MHz）, UL:450Mbps
  Output power class:	22 +/-1 dBm (class 3)


  Wi-Fi
  • QCA6391
  • Standard compliant: IEEE 802.11 a/b/g/n/ac/11ax
  • 2.4 GHz (2×2 MIMO) +5.8G band (2×2 MIMO)
  • AX1800
• Environment

  Temperature	Operating: 0°C to 40°C Storage: -20°C to 60°C
  Humidity	Operating Humidity: 5 to 95% RH Storage Humidity: 5 to 95% RH Non-condensing


  Physical specification

  Packaging Items	Casing Dimension (WxDxH): 95*100*205mm Weight: ~830g
  Packaging Accessories	DC 12V/2A Power adaptor


  Software Features
  System Features
  • Web UI/Multiple language supported
  • SMS/Quota/APN/PIN Management
  • Network Selection
  • Data Usage / Statistic
  • DHCP Server
  • NAT
  • IP Firewall
  • Proxy DNS
  • Parental control – Parental controls designed to allow control of Internet access on all devices connected to your home network.
  • Self-Check – Self-examination when it can’t connect to the network
  • Port Settings – Port forwarding, including single port, multiple ports or a range of ports
  • Security – SIM Lock and Secure boot features.
  • Firewall – DMZ/MAC Filter/IP Filter/URL Filter/Port Filter
• Wi-Fi AP Features
  • 802.11 a/b/g/n/ax/ 2.4GHz+5.8GHz
  • MU-MIMO
  • Auto Channel Select (ACS)
  • Hidden SSID
  • Maximum number of connections：32
  • Security Modes : WPA/WPA2 PSK, & WPA/WPA2/WPA3 mixed mode
  • Access Control : STA blacklist/white list
  • WPS : Pin and PBC, WPS2.0
